STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
Technical details
| Displacement | 1.9 cu-in |
| Power | 1.40 kW |
| Engine power | 1.90 HP |
| Device weight without refuelling | 7.3 lb 1) |
| System weight without refuelling | 4.08 / 3.91 / 3.88 / 3.78 / 3.85 / 3.98 / 3.77 kg 2) |
| Power-to-weight ratio | 2.40 kg/kW |
| Bar length | 16 / 12 / 14 " 3) |
| Groove width | 50 / 43 " |
| Saw chain pitch | 3/8"P |
| Device length with bumper spike | 265 mm 1) |
Features
The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.
The built-in carry ring makes it convenient and easy to maneuver in and out of trees.
The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.
Housings are lightweight, withstand greater impact, and are corrosion-resistant.
The IntelliCarb™ Compensating Carburetor is designed to automatically adjust the air/fuel ratio when the air filter becomes restricted or partially clogged and maintains the engine’s correct RPM. IntelliCarb™ uses air from the clean side of the air filter to control the diaphragm and flow of fuel. As the air filter becomes dirty and less air is available for the carburetor, the IntelliCarb™ system adjusts the fuel flow to compensate for the decrease in air flow. This is in contrast to typical carburetors that utilize this air from the “dirty” side of the air box.
This product is lightweight for easy portability, great maneuverability, and extended use.
A majority of STIHL products sold in America are made in America of U.S. and global materials.
A powerful low exhaust emission engine saves users fuel and operating costs without losing the power they count on to get the job done.
The purge pump primer feature enables the user to prime the carburetor with fuel, enabling easier starting. The purge pump primer is designed in a way that the operator cannot flood the machine by priming the carburetor too many times. Flooding the engine is still possible if the choke is not removed after the engine turns over.
STIHL chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.
The side-access chain tensioner makes it much more convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw.
This safety feature must be depressed before the trigger can be activated.
The top-handle model is specially designed for in-tree professional use only!
This compact arborist chainsaw is intended for professional in-tree services only and comes an at affordable price.

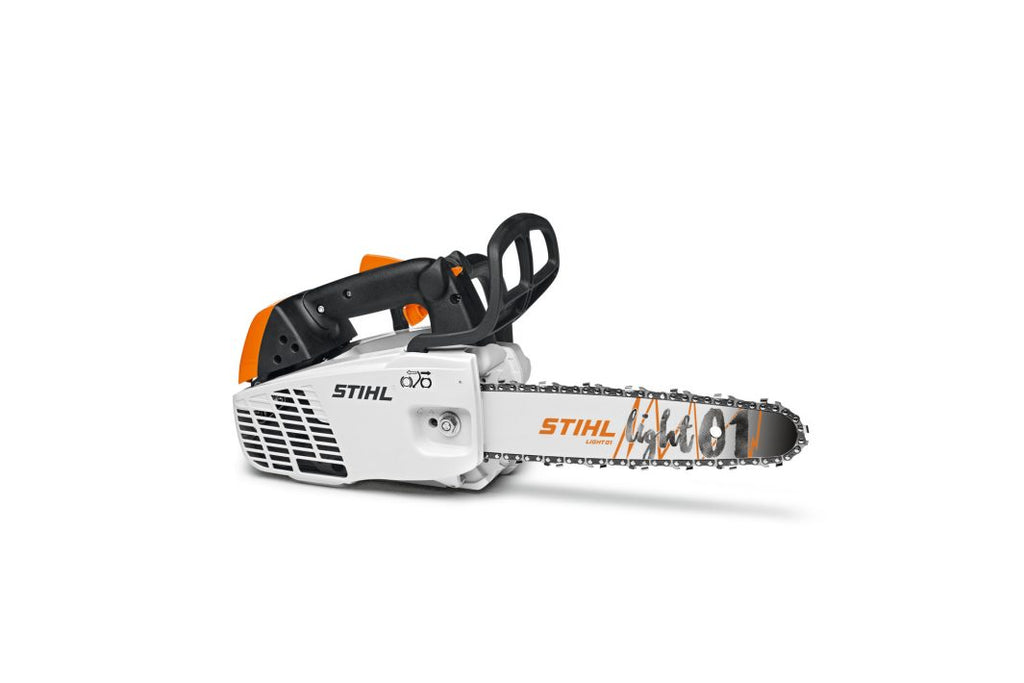

With its exceptional power-to-weight ratio, the MS 194 T packs professional-grade performance into a compact and lightweight body. Its efficient, low exhaust emission engine delivers excellent fuel economy. One-touch stop allows you to turn off the engine with the press of a button, which saves time and reduces the chance of flooding when restarting. Dependable and hardworking, the MS 194 T also includes a diagnostic port, making it easy to access data and service the product.
Note: Not available for purchase or delivery in California
Hazard Warnings
General Power Tool
Improper use of any power tool may cause serious or fatal injury. Read, understand, and follow carefully the operating and safety instructions in your instruction manual before using such products. STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only. Improper use of any power tool may cause serious or fatal injury. Read, understand, and follow carefully the operating and safety instructions in your instruction manual before using such products. STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only.
Proposition 65 - EnglishThis product contains chemicals known to the State of California to cause cancer and reproductive harm. www.P65Warnings.ca.gov
